A26 Tipping Rain Guage
A26 Tipping Rain Guage
Couldn't load pickup availability

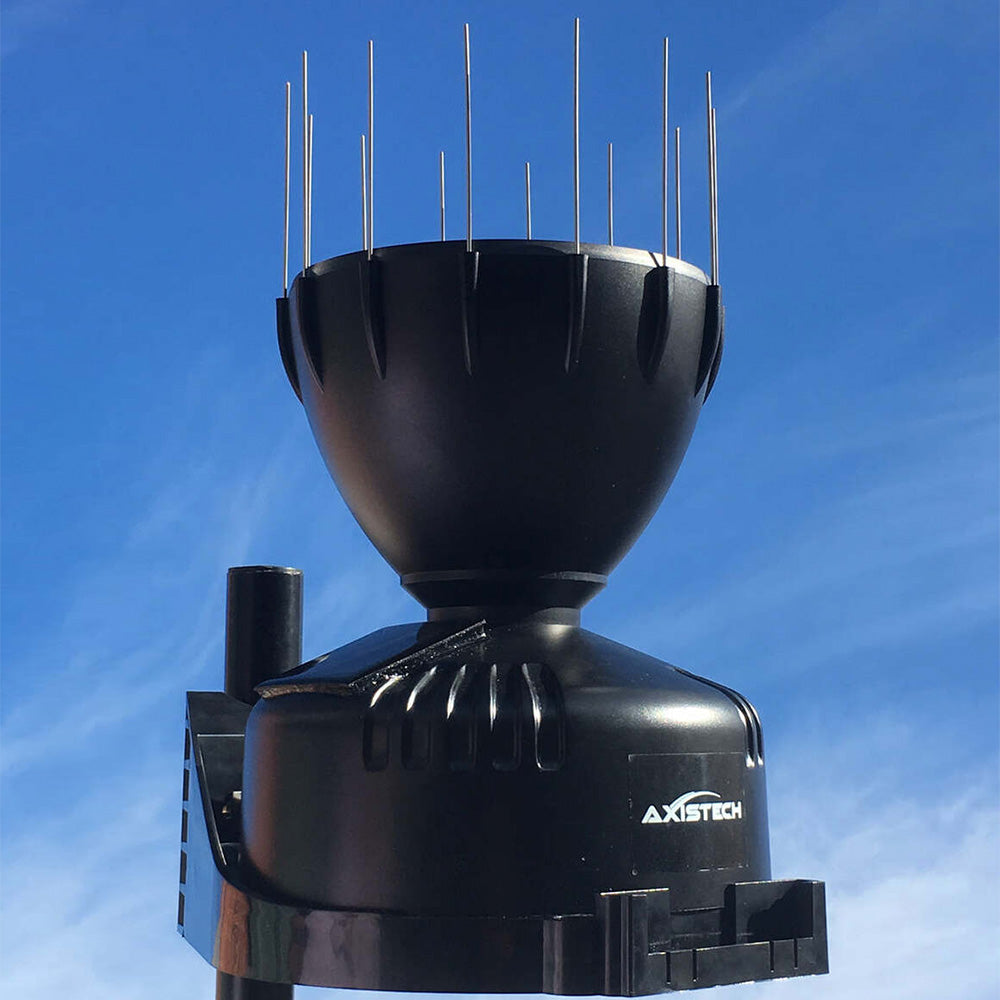

The A26 Tipping Rain Gauge is a standalone device powered by independent solar power and is factory-calibrated to report 0.2 mm per tip with an accuracy of +/- 3%. Both Cellular and Satellite connectivity options are available.
With the Tipping Rain Guage, you get:
- Rain Gauge
- Mounting base for easy installation to a pole or post
- 12-month warranty
Specifications
Specifications
- The sensors cover rain rates up to 50mm/hr with a resolution of 0.2mm and an accuracy of ±4%.
- Solar powered with Li battery as backup and connectivity through Satellite or 4G/LTE/CatM1/NB-IoT (5G-ready).
- Factory-calibrated to report 0.2 mm per tip with an accuracy of +/- 3%.
Shipping & Returns
Shipping & Returns
Cellular ships in 8 weeks. Satellite ships in 12 weeks
Installation
Installation

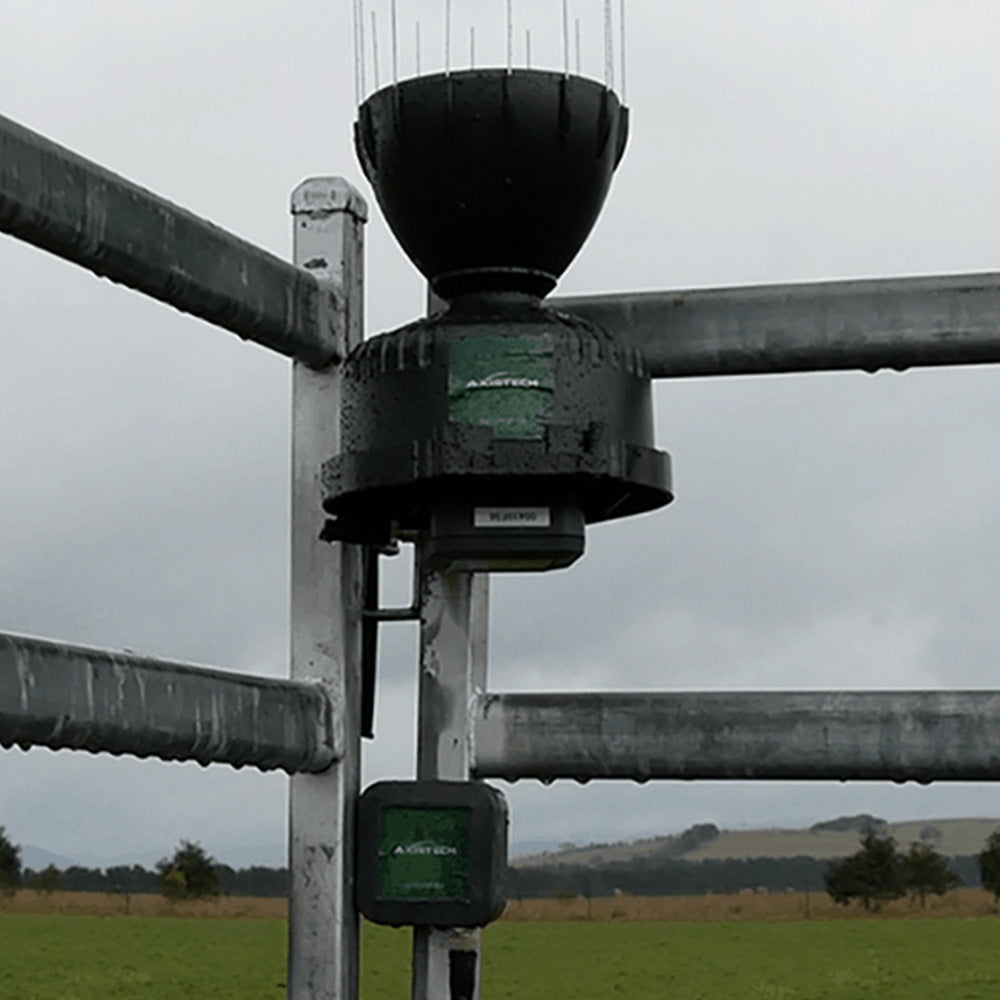

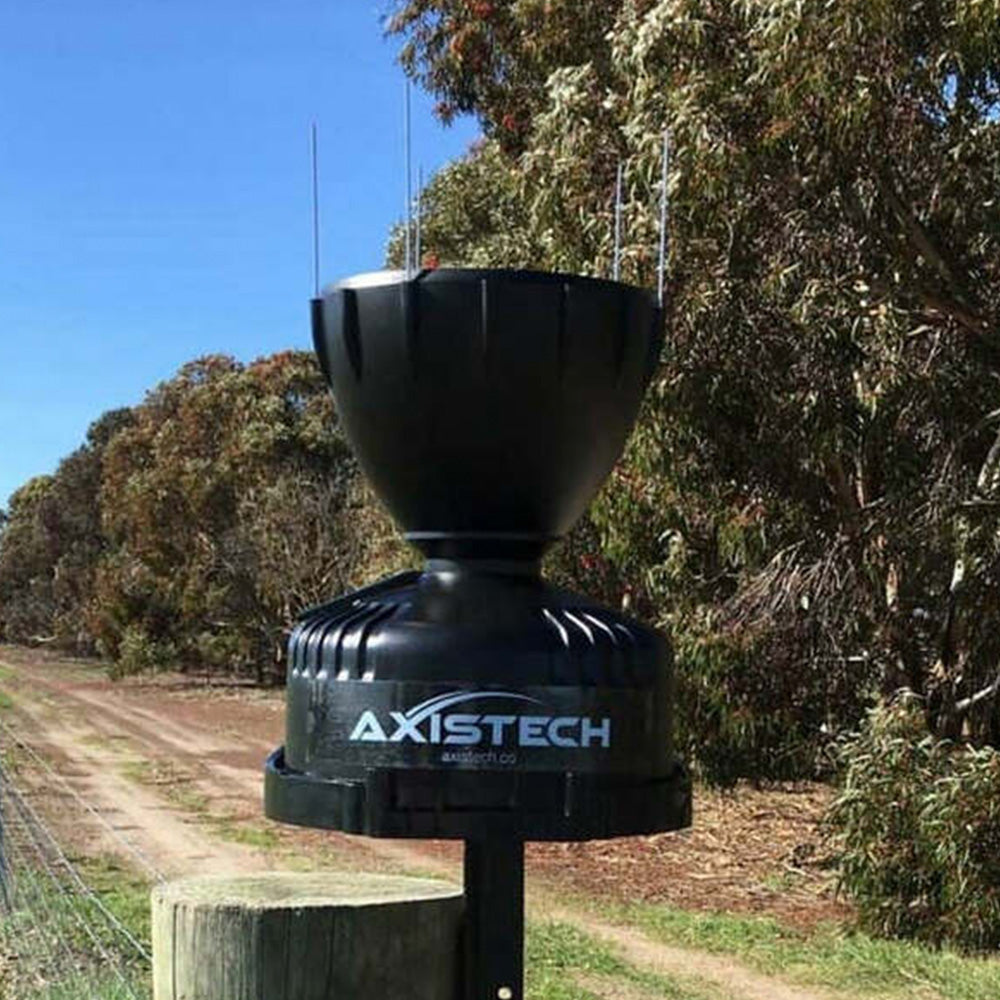

You will need a mounting pole (40 x 40mm or 40mm diameter) and the device is to be mounted 2.5 metres above the ground. Follow these simple steps:
1. Gently unlock the top piece of the rain gauge by turning it in an anti-clockwise direction. Cut the cable tie on the tipping buckets so they can move freely. Lock the top of the rain gauge back into place by turning in a clockwise direction.
2. Level the rain gauge using the spirit level on its base.
3. Ensure that the solar panel is facing north.q
Warranty
Warranty
12 month warranty
