JVA IPM-R36 IP Monitor with Relay
JVA IPM-R36 IP Monitor with Relay
Couldn't load pickup availability

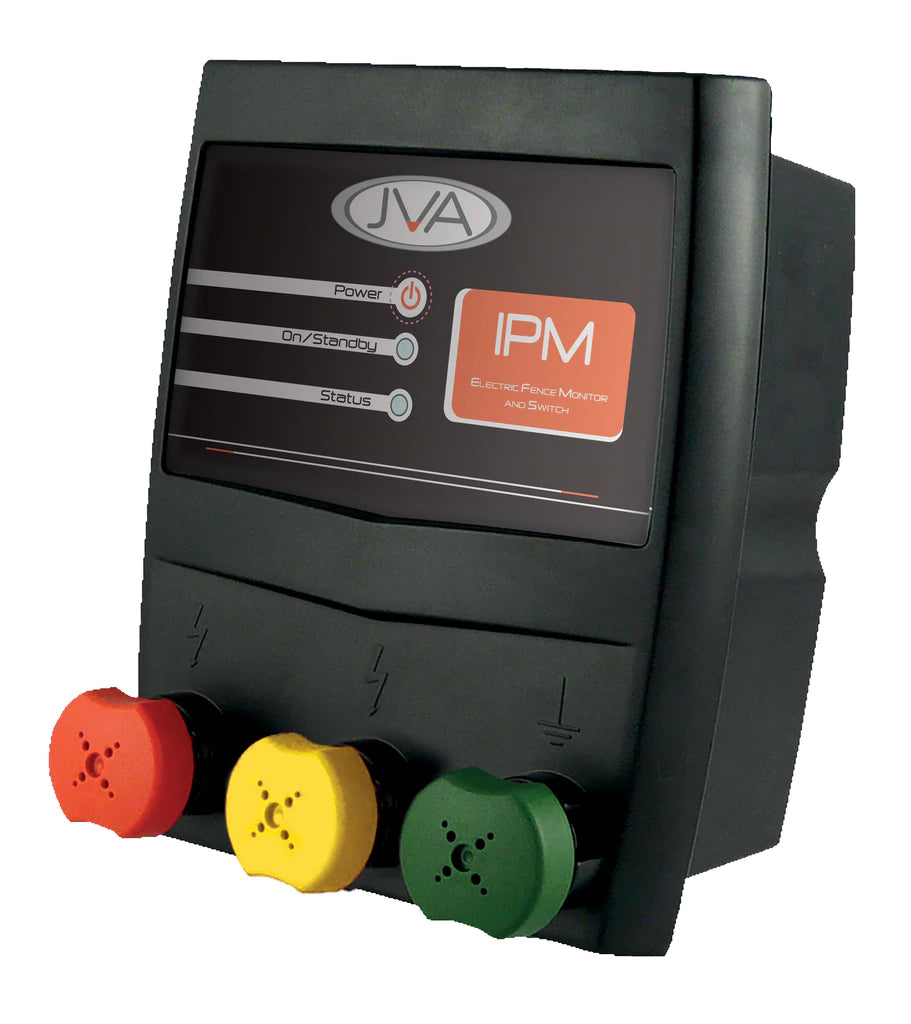

The JVA IP Monitor is an internet-connected electric fence monitor. Using JVA's free IP Energizer Controller app, it allows you to check your electric fence voltage and current from anywhere in the world. You can also get alerts if the fence voltage or current go beyond your configurable thresholds. This model contains a high voltage relay that also allow you to control the fence, switching it on or off remotely. It works with any energizer and uses built-in Wi-Fi technology to make connection a breeze.
Features:
- Mains or 12V Battery operation
- Built-in Wi-Fi for direct internet connection
- Can use 3G/4G cellular network with a separate modem/hotspot (not included)
- High power internal relay
- Works with any energizer up to 36J*
- Start-of-fence or end-of-fence monitoring
- Can break a large fence system into separately controlled and monitored zones
- UV stable enclosure
- O-ring sealed case for ant and moisture protection
- IP Energizer Controller app available for iPhone and Android
- Designed and manufactured in Australia
*NOTE: Warranty void if used with energizers rated over 36J
Specifications
Specifications
Network
Wi-Fi models: 802.11 b/g/n
Open/WEP/WPA/WPA2
4G models: Cat-M1, NB-IoT
Bands B1/B2/B3/B4/B5/B8/
B12/B13/B18/B19/B20/B26/
B28
Power
Voltage: 12 V DC
IPM1: 200 mA max
IPM2: 120 mA max
IPM3: 35 mA max
Relay
IPM1: Up to 36J
IPM2: Up to 16J
IPM3: Monitor only
Size (H x W x D):
180 mm x 155 mm x 115 mm
